【星空体育硬件产品型号】必填*:MLU220
【使用操作系统】必填*:
例如:ubuntu
【使用驱动版本】必填*:
例如v4.20.6
【出错信息】必填*:移yolov5的时候出现警告提示
下面是我做的一些步骤(想将yolov5x6.pt移植到星空体育MLU220上)
在高级的pytorch结构下先转成unzip格式(这个yolov5x6.pt是yolo官网下下载的pt文件)
因为 torch 1.3 版本没有 SiLU, Hardswish, 所以我在models文件中添加实现了
把common和yolo的代码改掉了,common代码有的没用的我就删掉了,yolo的代码是将星空体育给的和yolo官网的合并了一下
下面的是yolo的代码
#基本上都是官网的代码就是在这个函数中添加了一些星空体育的代码 class Detect(nn.Module): stride = None # strides computed during build export = False # onnx export dynamic = False # force grid reconstruction def __init__(self, nc=80, anchors=(), ch=()): # detection super(Detect, self).__init__() self.anchors_list = list(np.array(anchors).flatten()) self.num_anchors = len(self.anchors_list) self.nc = nc # number of classes self.no = nc + 5 # number of outputs per anchor self.nl = len(anchors) # number of detection s self.na = len(anchors[0]) // 2 # number of anchors self.grid = [torch.zeros(1)] * self.nl # init grid a = torch.tensor(anchors).float().view(self.nl, -1, 2) self.register_buffer('anchors', a) # shape(nl,na,2) self.register_buffer('anchor_grid', a.clone().view(self.nl, 1, -1, 1, 1, 2)) # shape(nl,1,na,1,1,2) self.register_buffer('anchors_cp', a.clone()) self.m = nn.ModuleList(nn.Conv2d(x, self.no * self.na, 1) for x in ch) # output conv #self.tmp_shape=[[1,255,80,64],[1,255,40,32],[1,255,20,16]] self.img_h = 640 self.img_w = 640 self.conf_thres = 0.4 self.iou_thres = 0.5 self.maxBoxNum = 1024 def forward(self, x): # x = x.copy() # for profiling output = [] # inference output self.training |= self.export if x[0].device.type == 'mlu': for i in range(self.nl): x[i] = self.m[i](x[i]) # conv y = x[i].sigmoid() print('y.shape: ',y.shape) output.append(y) detect_out = torch.ops.torch_mlu.yolov5_detection_output(output[0], output[1], output[2], self.anchors_list,self.nc, self.num_anchors, self.img_h, self.img_w, self.conf_thres, self.iou_thres, self.maxBoxNum) # [10, 13, 16, 30, 33, 23,30, 61, 62, 45, 59, 119, 116, 90, 156, 198, 373, 326] return detect_out if x[0].device.type == 'cpu': z = [] # inference output for i in range(self.nl): x[i] = self.m[i](x[i]) # conv bs, _, ny, nx = x[i].shape # x(bs,255,20,20) to x(bs,3,20,20,85) x[i] = x[i].view(bs, self.na, self.no, ny, nx).permute(0, 1, 3, 4, 2).contiguous() if not self.training: # inference if self.dynamic or self.grid[i].shape[2:4] != x[i].shape[2:4]: self.grid[i], self.anchor_grid[i] = self._make_grid(nx, ny, i) if isinstance(self, Segment): # (boxes + masks) xy, wh, conf, mask = x[i].split((2, 2, self.nc + 1, self.no - self.nc - 5), 4) xy = (xy.sigmoid() * 2 + self.grid[i]) * self.stride[i] # xy wh = (wh.sigmoid() * 2) ** 2 * self.anchor_grid[i] # wh y = torch.cat((xy, wh, conf.sigmoid(), mask), 4) else: # Detect (boxes only) xy, wh, conf = x[i].sigmoid().split((2, 2, self.nc + 1), 4) xy = (xy * 2 + self.grid[i]) * self.stride[i] # xy wh = (wh * 2) ** 2 * self.anchor_grid[i] # wh y = torch.cat((xy, wh, conf), 4) z.append(y.view(bs, self.na * nx * ny, self.no)) return x if self.training else (torch.cat(z, 1), ) if self.export else (torch.cat(z, 1), x) def _make_grid(self, nx=20, ny=20, i=0): d = self.anchors[i].device t = self.anchors[i].dtype shape = 1, self.na, ny, nx, 2 # grid shape y, x = torch.arange(ny, device=d, dtype=t), torch.arange(nx, device=d, dtype=t) yv, xv = torch.meshgrid(y, x) # torch>=0.7 compatibility grid = torch.stack((xv, yv), 2).expand(shape) - 0.5 # add grid offset, i.e. y = 2.0 * x - 0.5 anchor_grid = (self.anchors[i] * self.stride[i]).view((1, self.na, 1, 1, 2)).expand(shape) return grid, anchor_grid
_meshgrid函数因为星空体育的那个容器版本低,没有这个函数,所以我就在function下写了个这个函数
def _meshgrid(*tensors): if has_torch_function(tensors): return handle_torch_function(meshgrid, tensors, *tensors) if len(tensors) == 1 and isinstance(tensors[0], (list, tuple)): # the old interface of passing the operands as one list argument tensors = tensors[0] # type: ignore return _VF.meshgrid(tensors) # type: ignore

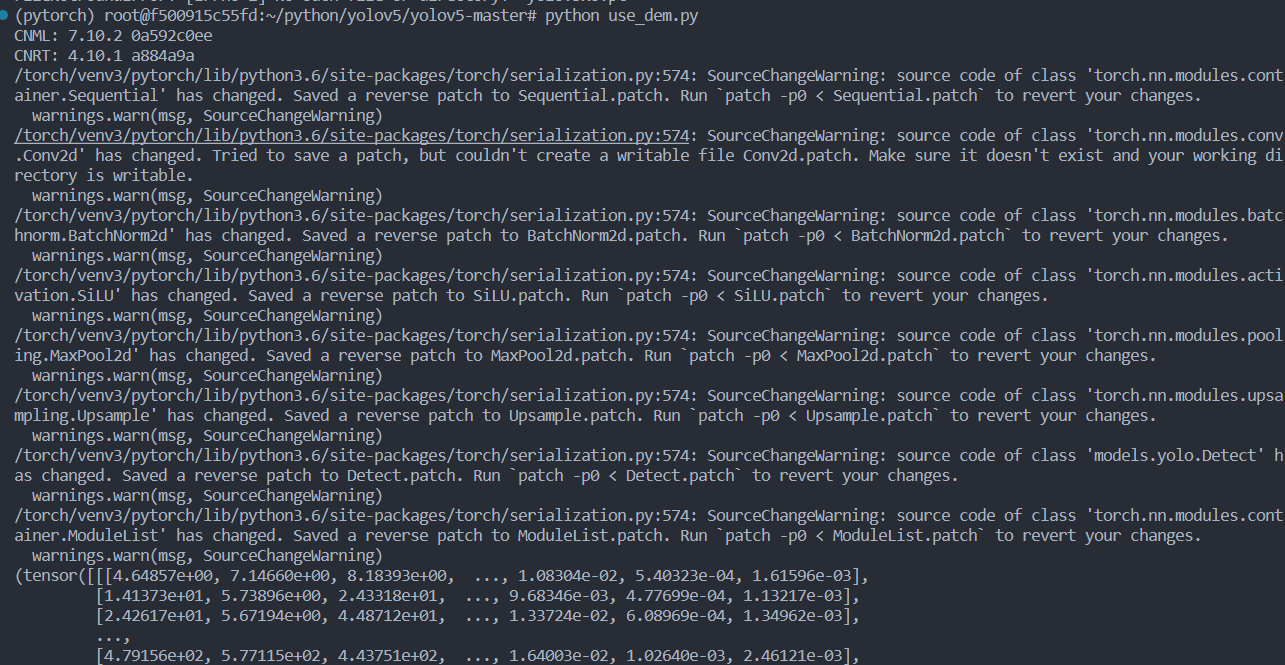

然后测试了一下,能跑出结果也能画框,但是有一些警告
所以想问一下需要考虑这个警告问题吗?怎么解决这个警告?还是能跑就放着他不管?
